Welcome to my Kiribati 36 DIY build journey. A 36′ Aluminium ‘Bluewater’ sailboat with twin rudders and a retractable keel. After completing a global circumnavigation on two wheels (See: Blog | YouTube) I now set my sights on doing the same by water. My hope is that the build, cost tracking and lessons learned will aid aspiring boat builders in their own quest. Please know the following:
- I have no affiliation with the company selling the boat plans, in other words, my words are my own. I am however affiliated with Google AdWords in the hope that any revenue made will assist towards the completion of this project.
- In the event of me deviating from the original build plans, adding my own parts, or amending parts then this is highlighted in the articles with ‘** Note‘.
- An up-to-date parts/article Index (including total expenditure) can be found: HERE
- Feel free to ask question via this blog, YouTube comments, or email: kiribati36 @ modularhippo.com – My aim is to respond to all questions within 24 hours.
Cost To Date: £27,448.12->£31,188.98 | $35,511.12->$40,512.75
Index
| Build Progress | Cost Tracking | Lessons Learned | Related Links |
Build Progress

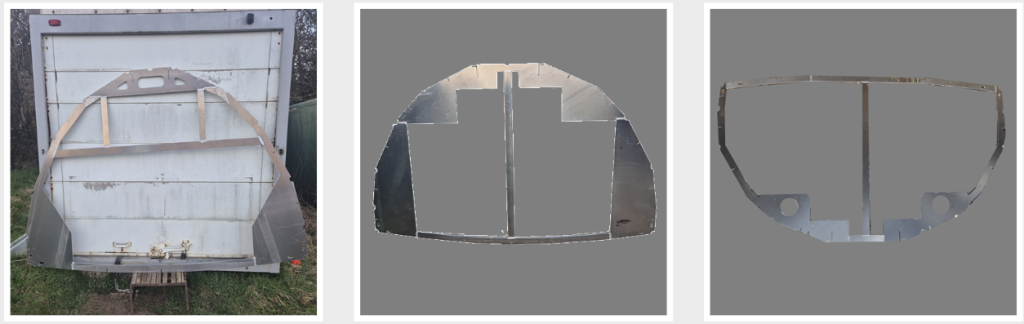

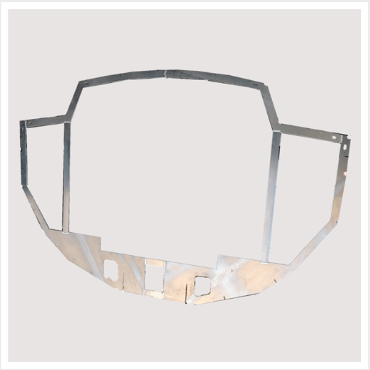

Pushing forward with another set of four bulkheads. Being such a structural part of the sailboat, it makes sense to get them sorted as a priority.

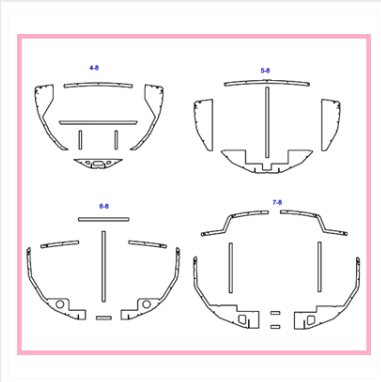

These are all ‘mid sections’ of the sailboat, so therefore they are the larger and more costly bulkheads of them all. Feel free to check the cost breakdown below for individual bulkhead expenditure:
Cost Tracking
Total Cost Chronological Order:
Breakdown (when applicable):
Parts/Material – Any raw material that I needed, or any ready made parts.
External Labour – External help with machining, milling or welding.
Tools & Misc. – Cost related to project, but not part of physical boat itself.
Category Breakdown – Cost Tracking per Category in £|$|%.
| PARTS/MATERIAL | (GBP) | (USD) |
| 1 x Bulkhead 5 (4-8) – (Parts & Material) | £758.87 | (≈$1,014.63) |
| 1 x Bulkhead 6 (5-8) – (Parts & Material) | £1,001.02 | (≈$1,338.39) |
| 1 x Bulkhead 7 (6-8) – (Parts & Material) | £627.25 | (≈$838.65) |
| 1 x Bulkhead 8 (7-8) – (Parts & Material) | £895.40 | (≈$1,197.18) |
| (PART 25) 4 X BULKHEADS | £3,282.54 | (≈$4,388.85) |
| EXTERNAL LABOUR | (GBP) | (USD) |
| 1 x Welding Of Bulkhead 5 (4-8) – (External Labour) | £40.00 | (≈$53.48) |
| 1 x Welding Of Bulkhead 6 (5-8) – (External Labour) | £40.00 | (≈$53.48) |
| 1 x Welding Of Bulkhead 7 (6-8) – (External Labour) | £40.00 | (≈$53.48) |
| 1 x Welding Of Bulkhead 8 (7-8) – (External Labour) | £60.00 | (≈$80.22) |
| 1 x Laser Cutting Of Bulkhead 5 (4-8) – (External Labour) | £66.11 | (≈$88.39) |
| 1 x Laser Cutting Of Bulkhead 6 (5-8) – (External Labour) | £88.12 | (≈$117.82) |
| 1 x Laser Cutting Of Bulkhead 7 (6-8) – (External Labour) | £51.63 | (≈$69.03) |
| 1 x Laser Cutting Of Bulkhead 8 (7-8) – (External Labour) | £72.46 | (≈$96.88) |
| (PART 25) 4 X BULKHEADS | £458.32 | (≈$612.78) |
| CATEGORY | (GBP) | (USD) | % |
| PARTS & MATERIAL | £3,282.54 | (≈$4,388.85) | 87.75% |
| EXTERNAL LABOUR | £458.32 | (≈$612.78) | 12.25% |
| TOOLS & MISC. | £00.00 | (≈$00.00) | 00.00% |
| TOTAL | £3,740.86 | (≈$5,001.63) | 100% |
Lessons Learned
The biggest realization so far is how quickly external costs build up. When romanticizing a build in your head you tend to do quick calculations around material cost & time, but tend to leave out external labour (as you really don’t know what that labour is unless you built a boat before).
Lessons I learnt during this stage:
- Material & External Labour – Aluminium is far more expensive than I first anticipated. I would not, at the start, in my wildest dreams think that four bulkheads would be this costly.
- Manual Lofting versus Laser Cutting – I had two choices in this area, one being buying sheet aluminium and use lofting calculations to work out final shape and measurements before plasma/bandsaw cut, then finalise with drill, hand and sanding tools. Or as a second choice, order the parts from the local laser cutting company. The local cutting company was a bit reluctant to tell me what they charge for the actual cut (trade secret) so had to do some rough calculations to come up with the number of 20-188% increase on top of material cost. As an example: – At the point of writing this (October 2022) a 12mmx3000x1500mm aluminium sheet of grade: 5083 cost roughly GBP 2,378.25 / (USD 2,670.23) (including of 20%VAT). That is 0.05285 per cm2 for this material type if I buy at mentioned measurements. The biggest of the 3 rudder-arm pieces (Central Rudder Arm) measures 110x240mm + 10mm added for sheet & bandsaw cuts = (120mmx250mm). (12×25=300 x 0.05285 = £15.86) I was charged GBP 20.54 / (USD 23.10) for this part by the laser cutting company (22.8% cost increase). In other words, for this piece I had a choice, make it myself of pay an additional GBP 4.68 / (USD 5.25) to have it cut for me. I also ordered 12 x Rudder arm brackets in the same material (estimated material cost: GBP 19.24 / (USD 21.60), Laser Cut charge for material and cut: GBP 55.46 / USD 62.27) and against the same formula it came in at a 188.25% increase. I believe the large difference in increase 20-188% between the two examples is down to stop/start costs, the more individual pieces the higher the cut fee even if from the same batch. the As much as I would love to make the piece by hand I also have to be realistic and stick to my 5 year building plan, so laser cutting it is. In my final cost calculations I will park this cost under ‘External Labour’.
